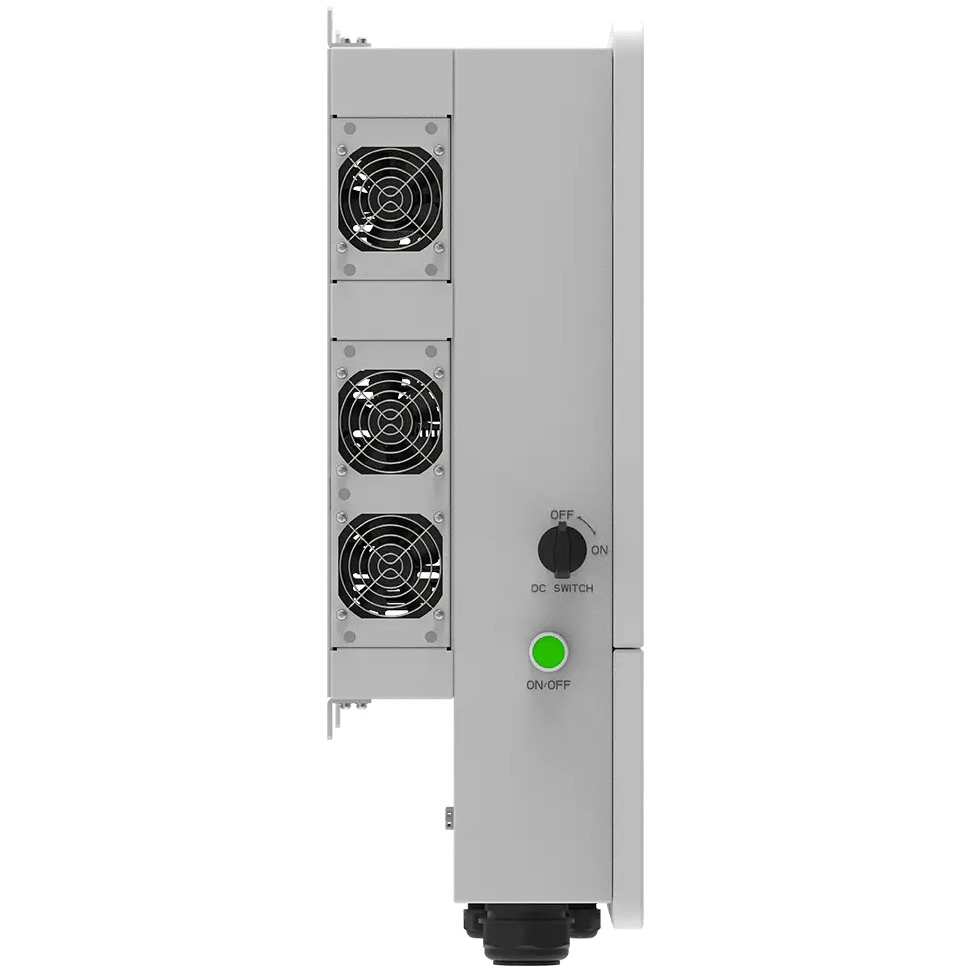

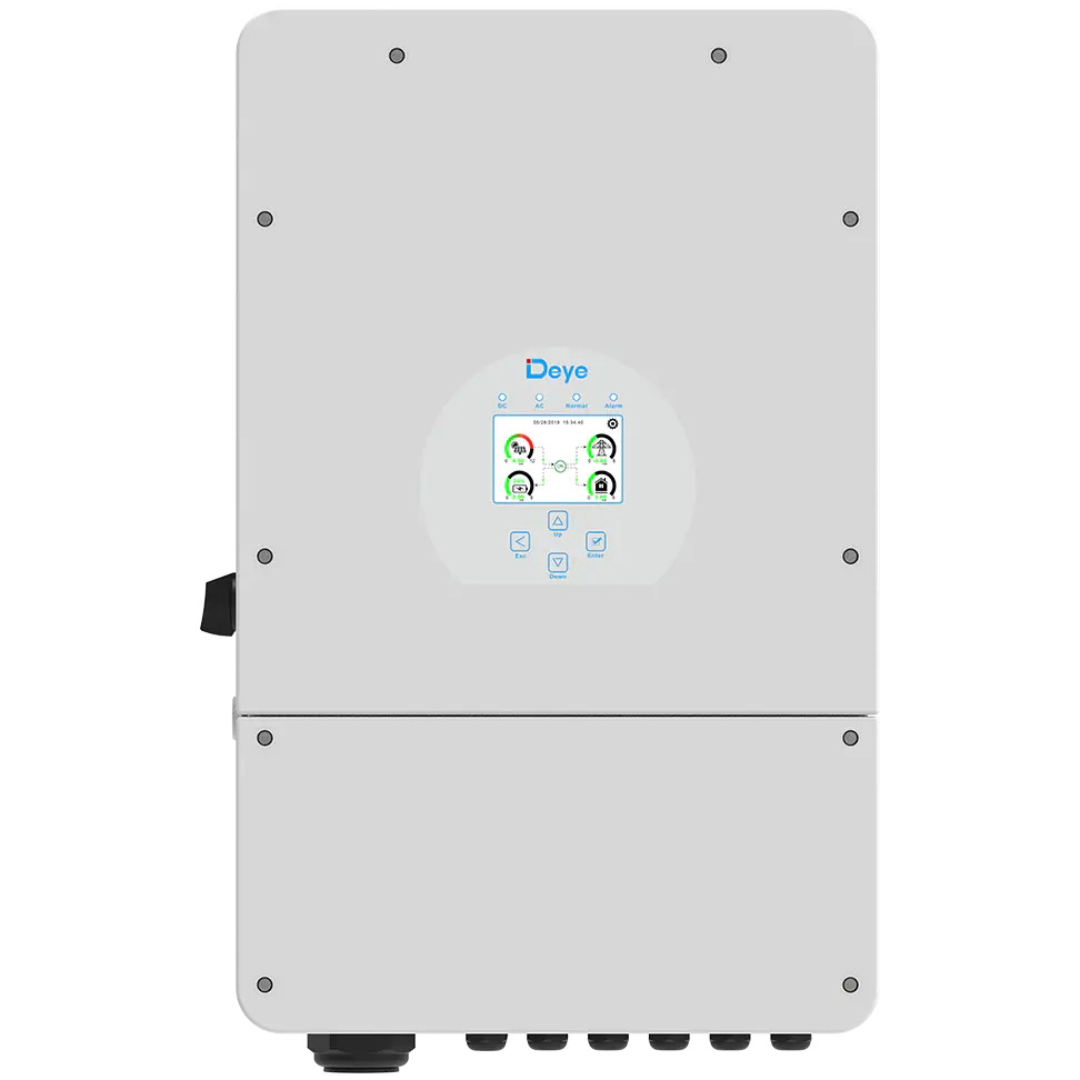

Deye 12KW Inverter12K-SG02LP1-EU-AM3 IP65 1PHASE
Colorful touch LCD, IP65 protection degree
AC couple to retrofit existing solar system
Max. charging/discharging current of 250A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Max. 16 pcs parallel for on-grid and off-grid operation;
Support multiple batteries parallel
US$2,360.00
Delivery in 5-7 working days (Harare & Bulawayo)
Other Areas in 2-3 Weeks.
30 in stock
Share this:
12 kW rated AC output power
Hybrid operation: grid + solar + battery with backup support
Supports low-voltage battery systems (≈ 40–60 V)
Max charging/discharging current: 250 A
3 MPPT trackers to optimize solar input
MPPT voltage range: 150–425 V
Max DC input power: ~ 15,600 W
Max AC apparent power: ~ 13,200 VA
Efficiency: up to ~ 97.6%
IP65 protection rating for outdoor durability
Color touch LCD for local monitoring and control
Communication interfaces: RS485 / RS232 / CAN, options for WiFi / 4G etc.
Parallel operation: up to 16 units for scaling
6 programmable time periods for battery charging/discharging
Comprehensive protection features (overvoltage, overcurrent, short circuit, reverse polarity, thermal protection, etc.)
Dimensions (excl. connectors/brackets): 420 × 670 × 233 mm
Weight: ~ 35.6 kgProduct code: SUN-12K-SG02LP1-EU-AM3
